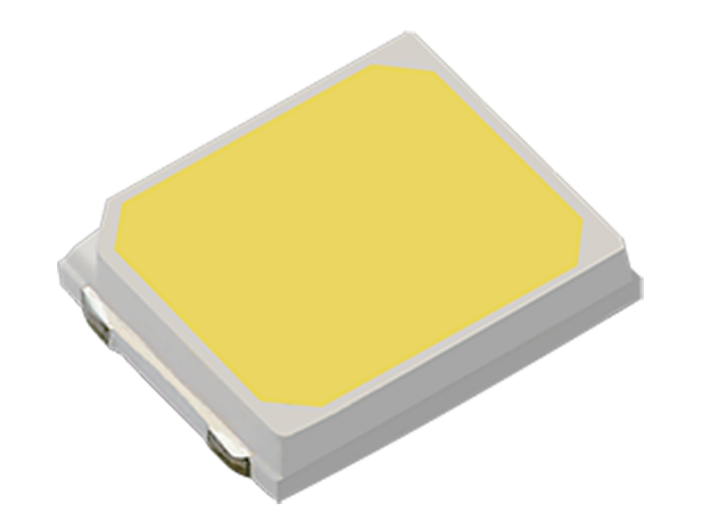

2835高光效方杯

产品特性

·符合ERP和ANSI标准；
·特殊点胶方式提高光效，最高光效达240Lm/W；
·具有散热好，耐高温，低光衰；
·产品性能稳定，最高寿命L90达10万小时。
产品应用
·传统照明替换、通用照明、商业照明、植物照明等。

样品申请

Package	Product Type	CCT (K)	CRI (min.)	Φ (lm)	Efficacy (lm/w)	Vf (V)	If (mA)	IF-Max (mA)	IFP-Max (mA)	Power (w)	Tj (℃)	Viewing Angle (°)
	P28351-W29SD4D4DB2B3-XXXX	3000	70	31-32.14-33	190.7	2.81	60	300	600	0.2	125	120
	P28351-W50SD5D5DB2B3-XXXX	5000	70	33-34.56-35	205.0
	P28351-W29SE0E0DB2B3-XXXX	3000	70	32-32.93-34	195.3	2.81	60	300	480	0.2	125	120
	P28351-W50SE1E1DB2B3-XXXX	5000	70	34-35.41-36	210.0
	P28351-W29SD5D5DB2B3-XXXX	3000	70	33-33.71-35	200.0	2.81	60	300	400	0.2	125	120
	P28351-W50SD6D6DB2B3-XXXX	5000	70	35-36.25-37	215.0
	P28351-W29SD5D5DB2B3-XXXX	3000	70	33-33.64-35	204.6	2.74	60	350	350	0.2	125	120
	P28351-W50SD6D6DB2B3-XXXX	5000	70	35-36.17-37	220.0
	P28351-W29SD5D5DB2B3-XXXX	3000	70	33-34.40-35	209.3	2.74	60	350	350	0.2	125	120
	P28351-W50SE2E2DB2B3-XXXX	5000	70	36-36.99-38	225.0
	P28351-W29SE1E1DB2B3-XXXX	3000	70	34-35.54-36	218.6	2.71	60	500	350	0.2	125	120
	P28351-W50SD7D7DB2B3-XXXX	5000	70	37-38.21-39	235.0
	P28351-W29SD6D6DB2B3-XXXX	3000	70	35-36.29-37	223.2	2.71	60	500	300	0.2	125	120
	P28351-W50SE3E3DB2B3-XXXX	5000	70	38-39.02-40	240.0
	P28351-W29SE2E2DB2B3-XXXX	3000	70	36-37.67-38	232.5	2.70	60	500	240	0.2	125	120
	P28351-W50SD8D83DB2B3-XXXX	5000	70	39-40.50-41	250.0
	P28351-W29SD1D1FB2B3-XXXX	3000	80	28-29.79-30	176.7	2.81	60	300	200	0.2	125	120
	P28351-W50SD4D4FB2B3-XXXX	5000	80	31-32.03-33	190.0
	P28351-W29SD3D3FB2B3-XXXX	3000	80	29-30.58-31	181.4	2.81	60	300	240	0.2	125	120
	P28351-W50SD4D4FB2B3-XXXX	5000	80	31-32.88-33	195.0
	P28351-W29SD2D2FB2B3-XXXX	3000	80	30-31.36-32	186.0	2.81	60	300	240	0.2	125	120
	P28351-W50SE0E0FB2B3-XXXX	5000	80	32-33.72-34	200.0
	P28351-W29SD4D4FB2B3-XXXX	3000	80	31-32.11-33	195.3	2.74	60	350	200	0.2	125	120
	P28351-W50SD5D5FB2B3-XXXX	5000	80	33-34.52-35	210.0
	P28351-W29SEE0FB2B3-XXXX	3000	80	32-32.88-34	200.0	2.74	60	350	180	0.2	125	120
	P28351-W50SE1E1FB2B3-XXXX	5000	80	34-35.35-36	215.0
	P28351-W29SD5D5FB2B3-XXXX	3000	80	33-34.02-35	209.3	2.71	60	500	180	0.2	125	120
	P28351-W50SD6D6FB2B3-XXXX	5000	80	35-36.59-37	225.0
	P28351-W29SD5D5FB2B3-XXXX	3000	80	33-34.78-35	213.9	2.71	60	500	180	0.2	125	120
	P28351-W50SE2E2FB2B3-XXXX	5000	80	36-37.40-38	230.0
	P28351-W29SD6D6FB2B3-XXXX	3000	80	35-36.16-37	223.2	2.70	60	500	180	0.2	125	120
	P28351-W50SD7D7FB2B3-XXXX	5000	80	37-38.88-39	240.0
